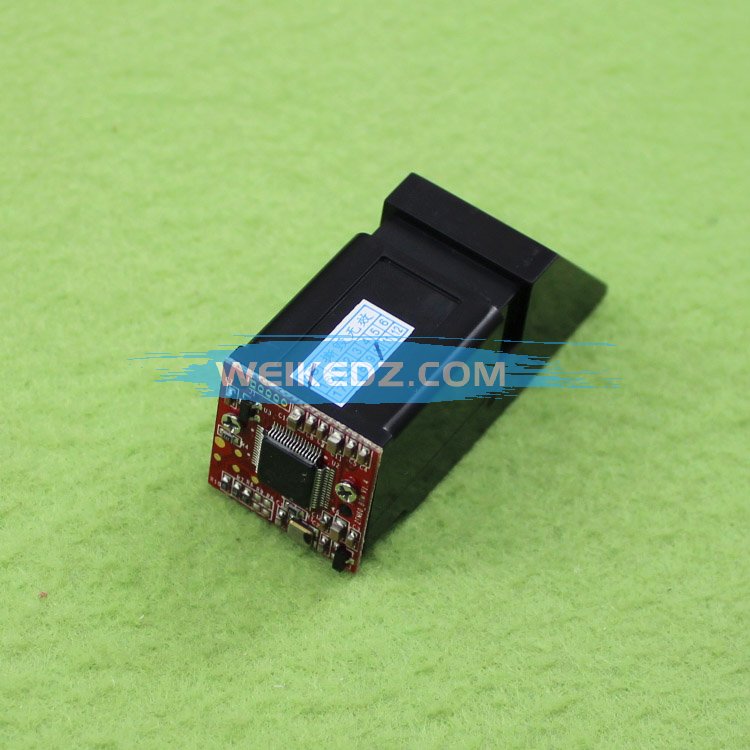

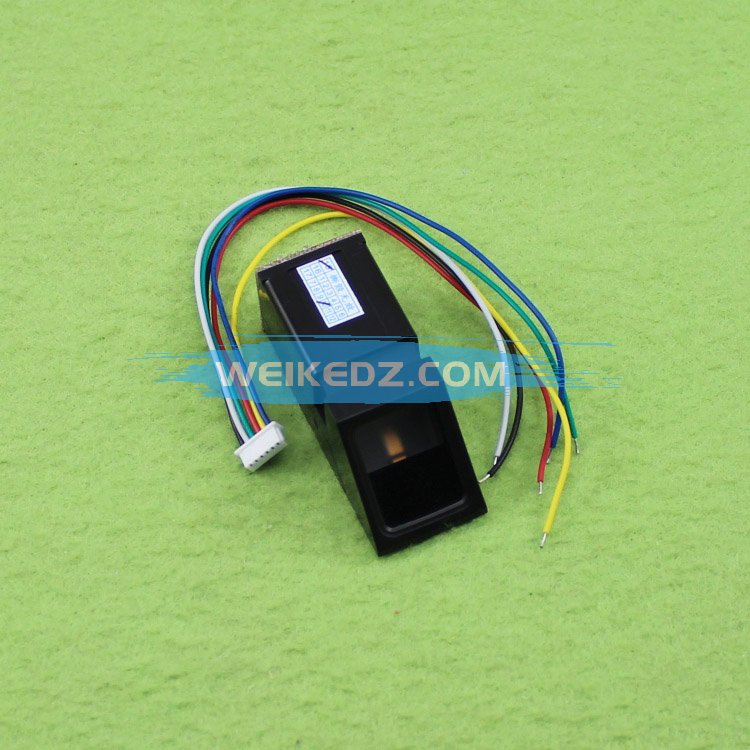

Fingerprint Recognition Module +UNO R3 MEGA328P ATMEGA16U2 for Arduino
Color: Black + green
Material: Plastic + component
Working frequency: 433Mhz/868Mhz/915Mhz
Sensitivity: -100dBm
Working voltage: 1.9~3.6V,
Operating rate: 50Kbps,
Supply voltage: DC 3.6~6.0V
Character file size:256 bytes
Template size:512 bytes
Storage capacity:1000
Search time: < 1 second
False Acceptance Rate (FAR) < 0.001%
False Rejection Rate (FRR) < 1.0% (security level: 3)
Voltage 3.6-6.0V DC via USB port
Working current: < 120mA
Peak voltage: < 140mA
Window size: 14 x 18mm
Upstream: UART: (9600×N)bps (N=1~12, N default 6, equal 57600bps)
Operating environment Temperature: -20 to 50 centigrades
Relative humidity: 40%RH to 85%RH (No condensation)
During the fingerprint verification process, the latest collected fingerprint features would be integrated into the fingerprint database automatically so that the users would obtain better and better fingerprint verification result.
Can be embedded into a variety of end products, such as: access control, attendance, safe, car door locks.
